Portable Solar Panels
Solar Panel Specifications
SPP150x
| pSolBot 1 Compatibility | Yes |
| Type | Flexible |
| Output Power (W) | 150 |
| Voc/Vmp (V) | 23.72/19.2 |
| Isc/Imp (A) | 8.35/7.81 |
| Weight (lb/kg) | 6.35/2.88 |
| Dimensions | 40.6x22.8 x .14" / 1030x800x3.5mm |
SPP200x
| pSolBot 1 Compatibility | Yes |
| Type | Flexible |
| Output Power (W) | 200 |
| Voc/Vmp (V) | 49.68/39 |
| Isc/Imp (A) | 5.56/5.13 |
| Weight (lb/kg) | 8.1/3.67 |
| Dimensions | 49.2x22.8 x .14" / 1250x960x3.5mm |

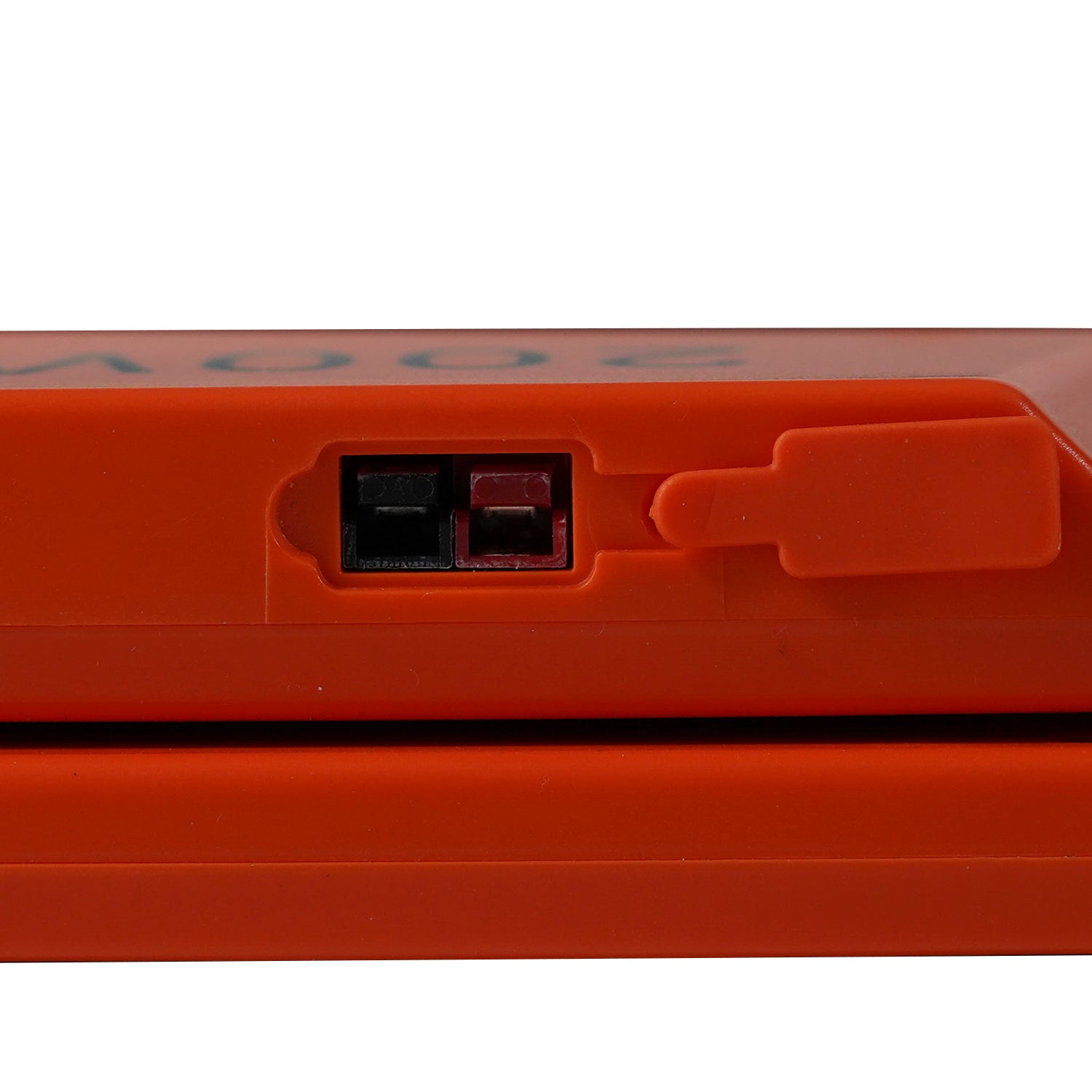

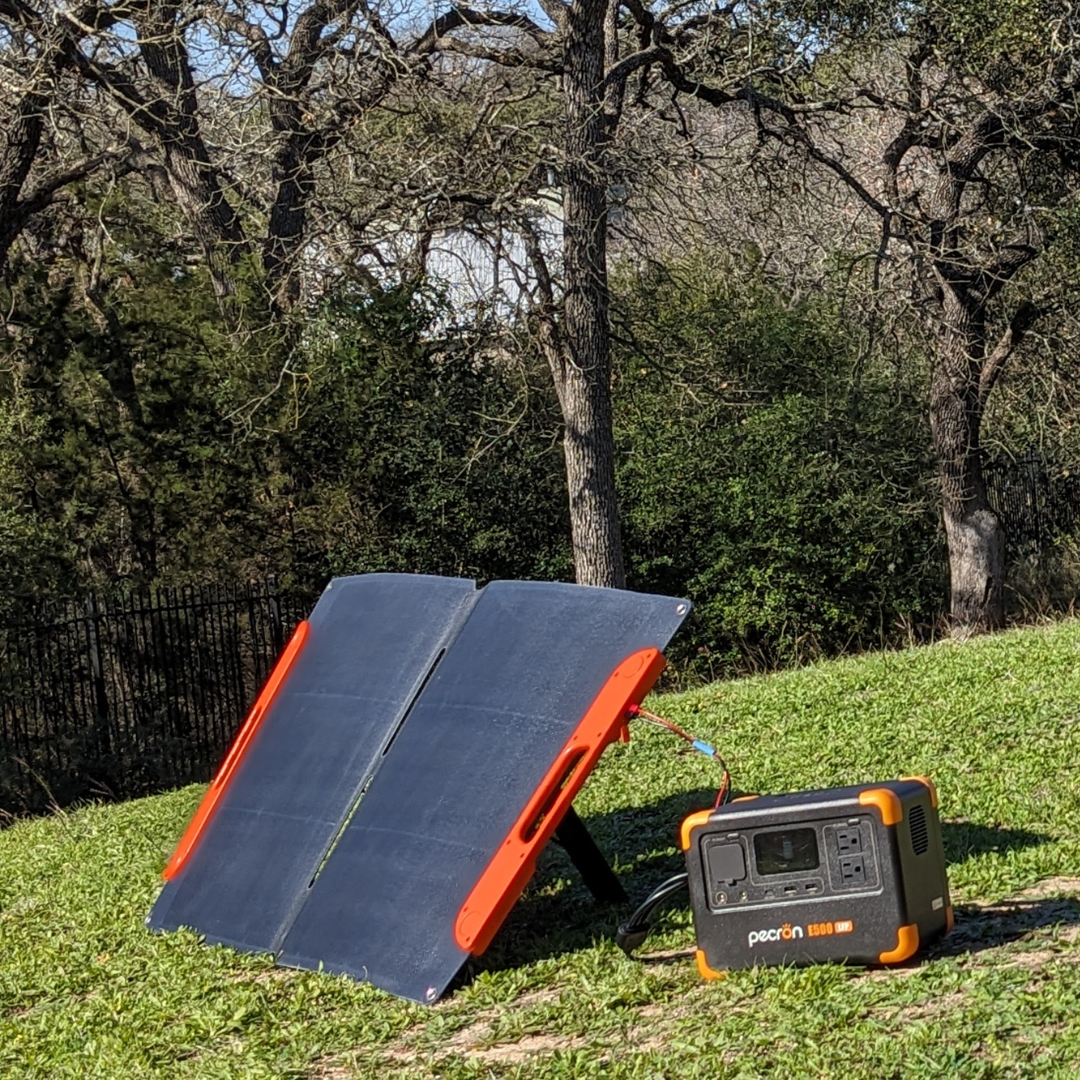

SPP100
| pSolBot 1 Compatibility | Yes |
| Type | Foldable |
| Output Power (W) | 100 |
| Voc/Vmp (V) | 21.95/17.16 |
| Isc/Imp (A) | 6.32/5.83 |
| Weight (lb/kg) | 7.1/3.2 |
| Dimensions Folded | 22.1x22.8 x 1.8" / 560x580x45mm |
| Dimensions Unfolded | 44.1x22.8x1.2" / 1120x580x30mm |

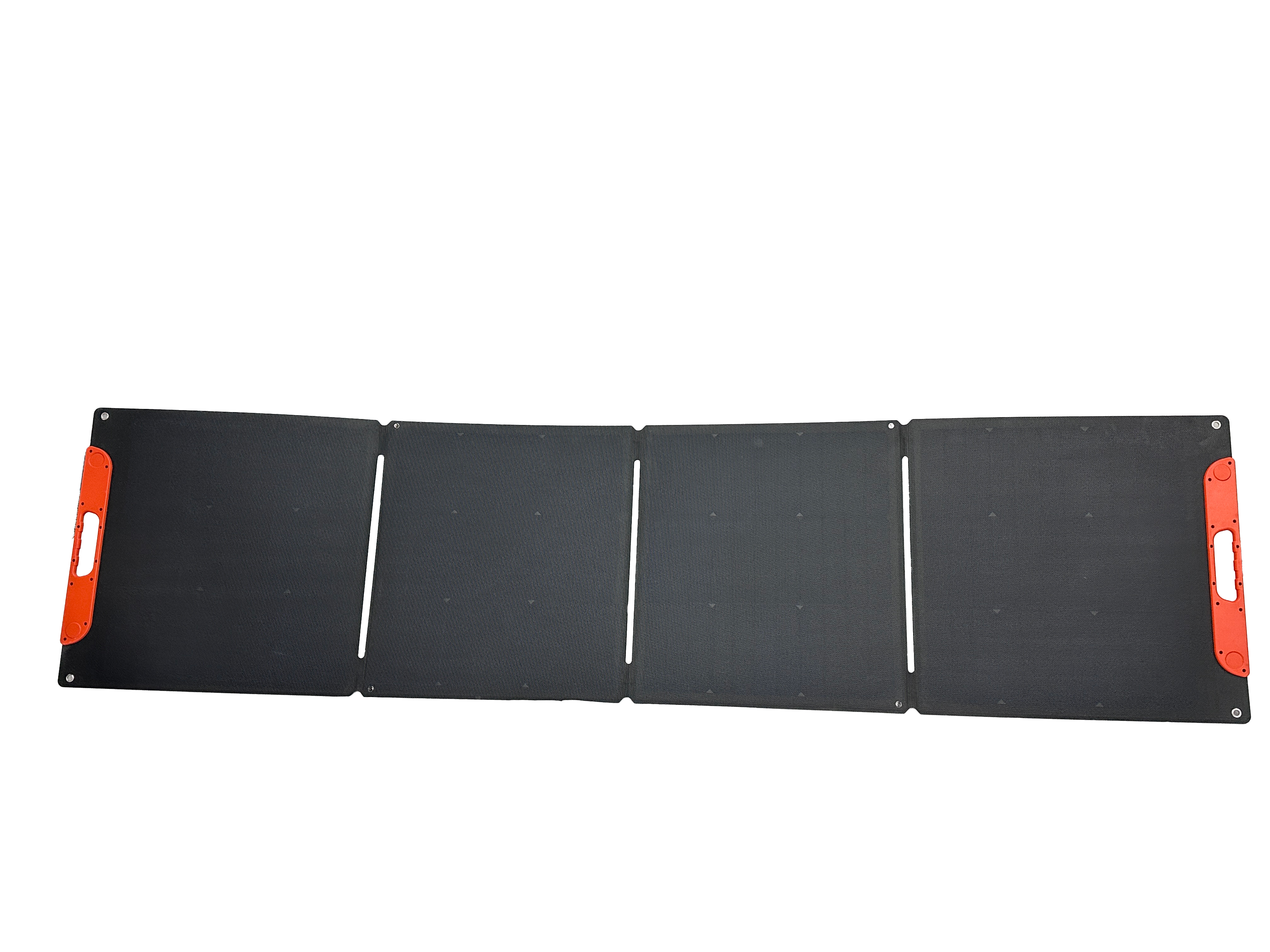

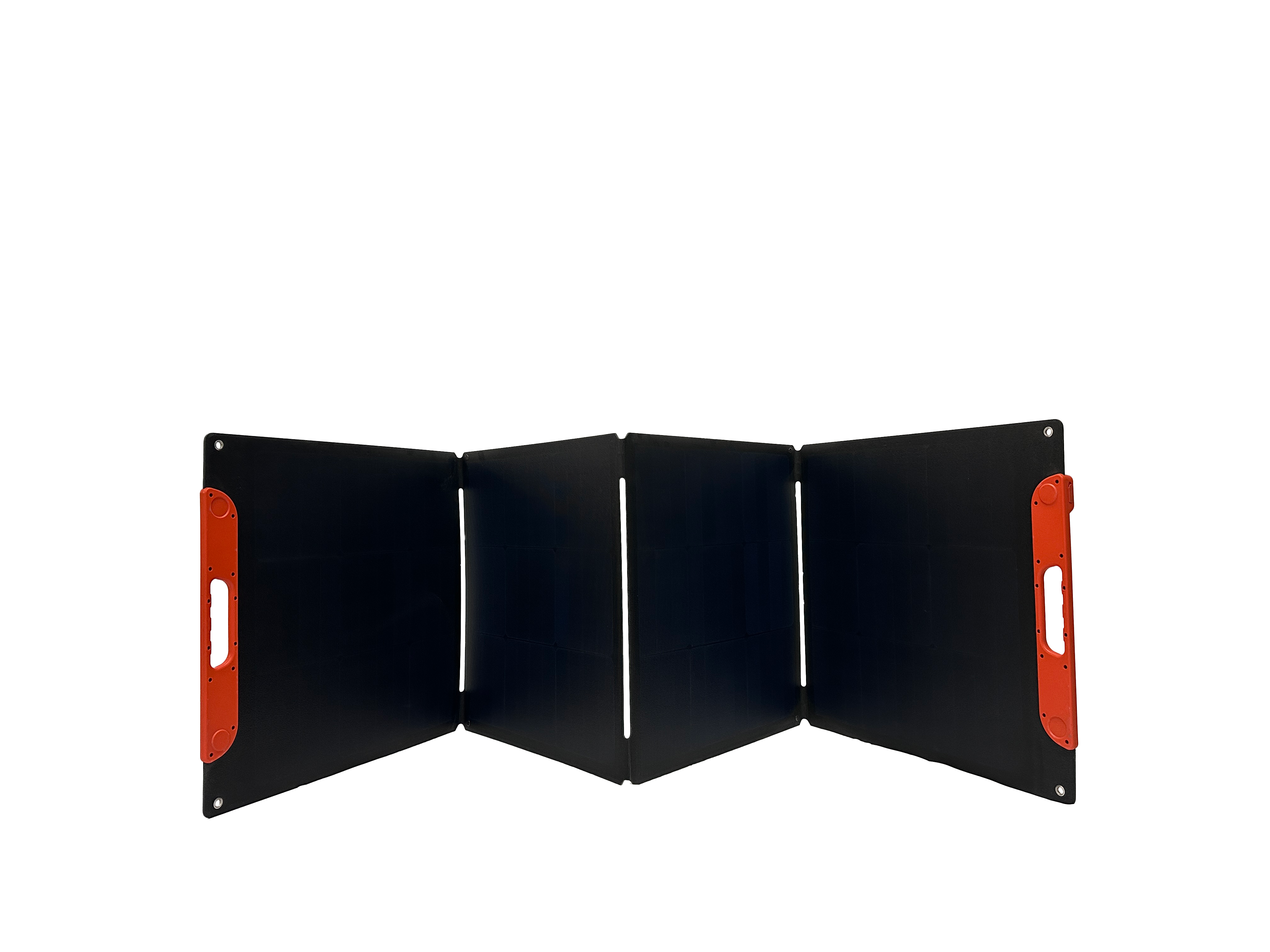

SPP200
| pSolBot 1 Compatibility | No |
| Type | Foldable |
| Output Power (W) | 200 |
| Voc/Vmp (V) | 39.46/32.4 |
| Isc/Imp (A) | 6.53/6.17 |
| Weight (lb/kg) | 17.9/8.1 |
| Dimensions Folded | 24.6x23.6 x 1.8" / 625x600x45mm |
| Dimensions Unfolded | 93.8x23.6x1.2" / 2383x600x30mm |
