Real-World 220W Bifacial Solar Test: Quantifying Albedo Gains and Thermal Trade-Offs

https://youtube.com/shorts/U-Zb4o5PURw

Bifacial photovoltaic (PV) modules have become standard in utility-scale ground mounts, but their adoption in portable, off-grid systems raises practical questions: How much usable energy does the rear face of the cell actually contribute under field conditions, and what factors limit that gain?

Unlike monofacial modules that feature an opaque backsheet, bifacial panels utilize dual-glass or transparent backsheet designs that expose the rear face of the monocrystalline cells to ambient irradiance. To evaluate the practical impact of rear-face absorption without theoretical modeling, we conducted an empirical outdoor trial on a 220W portable bifacial module under consistent solar conditions.

The Experimental Setup

The 220W nameplate panel was deployed on natural grass turf connected directly to a portable power station displaying real-time PV input wattage.

The test isolated four distinct conditions to evaluate baseline contribution, complete rear-face occlusion, targeted reflection, and high-albedo ground simulation:

Data Analysis & Technical Takeaways

1. Ambient Albedo Contribution

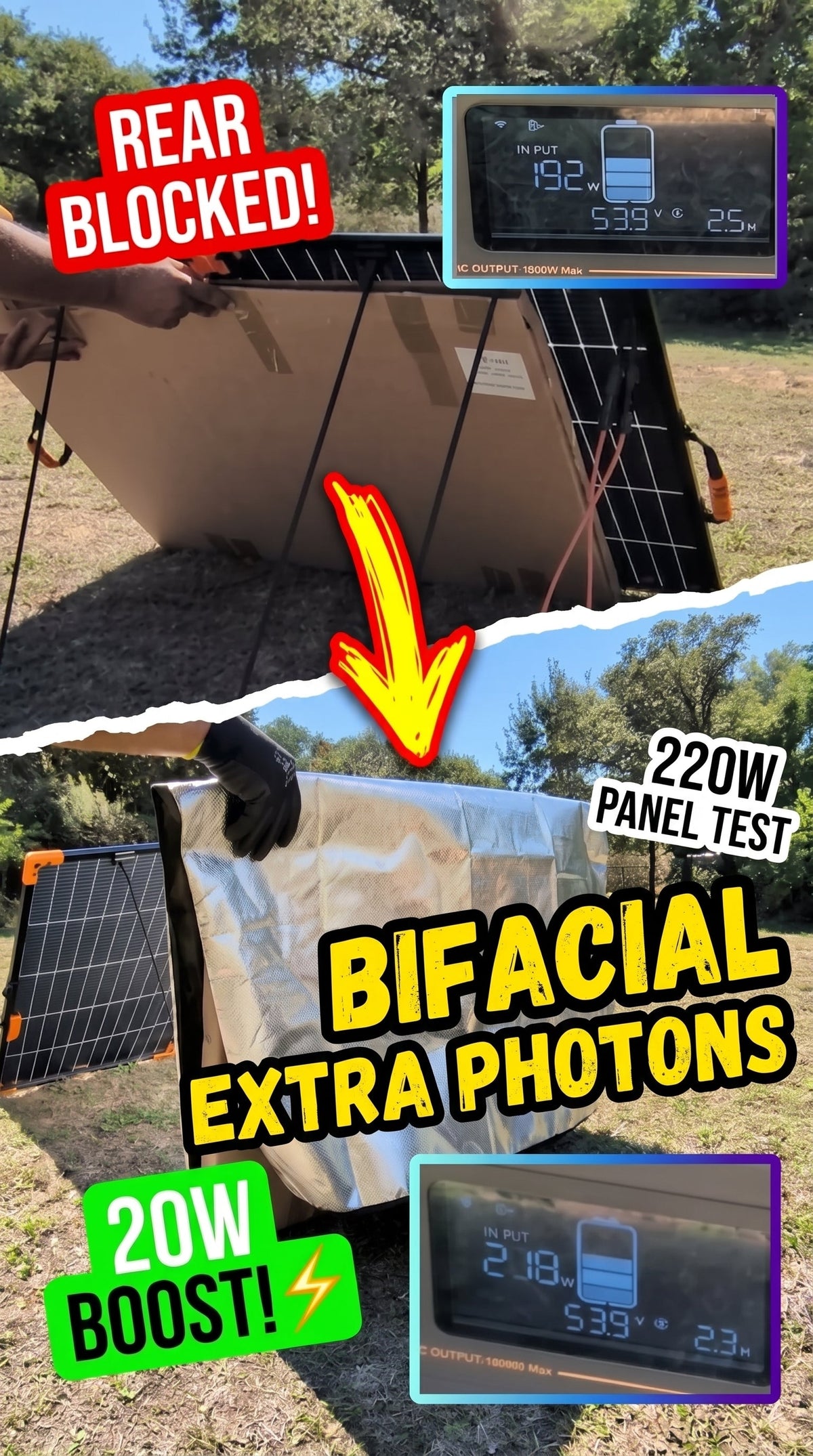

In standard deployment over natural turf, the module produced 198W. When the rear face was occluded using an opaque cardboard barrier, production fell immediately to 192W.

Natural grass has an albedo coefficient of roughly 0.15 - 0.25 (reflecting only 15% to 25% of incident light). Despite this relatively low-reflectivity surface, diffuse ground scattering accounted for a measurable 6W contribution. This confirms that even without intentional ground preparation, a bifacial cell's rear face actively harvests energy from ambient ground bounce.

2. Specular vs. Diffuse Rear-Face Irradiance

Introducing an angled reflective screen behind the panel redirected direct incident sunlight onto the rear face of the cells, driving output up to 218W—a 20W gain (+10.1%) over baseline.

To simulate practical off-grid environments—such as sand (approx 0.30 - 0.45 albedo) or snow cover (approx 0.70 - 0.90 albedo)—we replaced the targeted screen with a wide reflective ground tarp. This setup delivered 216W. The dispersed reflection across the entire footprint provided a wide-aperture capture area, lifting production close to the panel's rated standard test condition (STC) ceiling.

3. The Thermal Constraint: Pmax Temperature Coefficient

A common question in high-irradiance testing is: Why did targeted rear reflection cap around 218W instead of exceeding the panel’s nameplate rating by a larger margin?

The answer lies in the temperature coefficient of maximum power Pmax. Monocrystalline silicon cells generally exhibit a negative temperature coefficient between -0.35%/°C and -0.45%/°C above the STC baseline of 25°C:

Where:

• P{STC} is the rated power under Standard Test Conditions (220W)

• gamma is the temperature coefficient (approx -0.0038/°C)

• Tcell is the actual operating junction temperature

Concentrating incident irradiance onto both the front and rear faces accelerates thermal absorption. As junction temperature (Tcell) rises under intense solar radiation, semiconductor bandgap narrowing leads to a decrease in open-circuit voltage (Voc), eroding marginal photogenerated current gains. In real-world field operations, thermal derating acts as a natural dampener on total bifacial yield.

Practical Deployment Recommendations

• Elevate Above Low-Albedo Ground: If operating over damp soil, mulch, or dark asphalt, raise the panel or angle it where ground bounce is unobstructed.

• Leverage High-Albedo Surfaces: Setting up over sand, light-colored gravel, concrete, or snow provides immediate, passive yield increases of 8% to 12% without extra hardware.

• Maintain Rear Airflow: Because additional photon capture increases heat accumulation, ensure rear ventilation remains uninhibited to mitigate thermal losses.
